Twister ECO

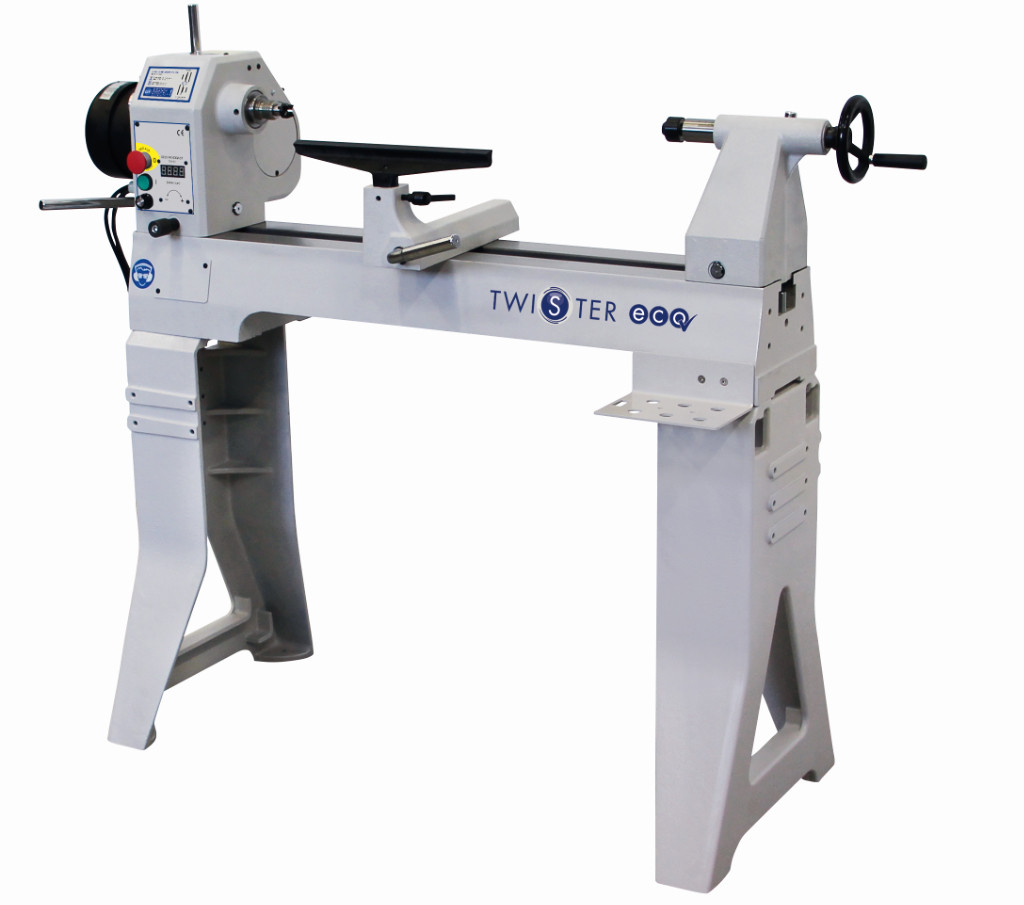

The Twister ECO lathe. Although this lathe is not designed by the Stratos family but still included in the program. The bed, the headstock and the tailstock are made of cast iron, which makes the Twister ECO a stable lathe. The headstock can shift and swivel, which also allows larger diameters to be turned outside the bed. An optional bedextension/exterior turn-out device is available.
Supplied:
- 4 teeth drive center
- live center
- toolrest 350 mm
- knock out rod
- User manual
The Twister ECO standard features:
- frequency drive inverter
- a powerful motor (1.5 KW)
- runs very quiet
Technical data:
- Center Height: 200 mm
- Between the centers: 720 mm
- speeds: 80-1350/180-3700 U/min
- Digital speed readout-engine: 1.5 KW/2 hp (230 V)
- thread on the spinde: M33 x 3.5 (DIN 800)
- Morse taper: MT2
- tailstock: MC2 with a 10 cm quill travel
- toolrest banjo: 1 inch (25.4 mm)
- weight: approx. 161kg
- ASR: yes
