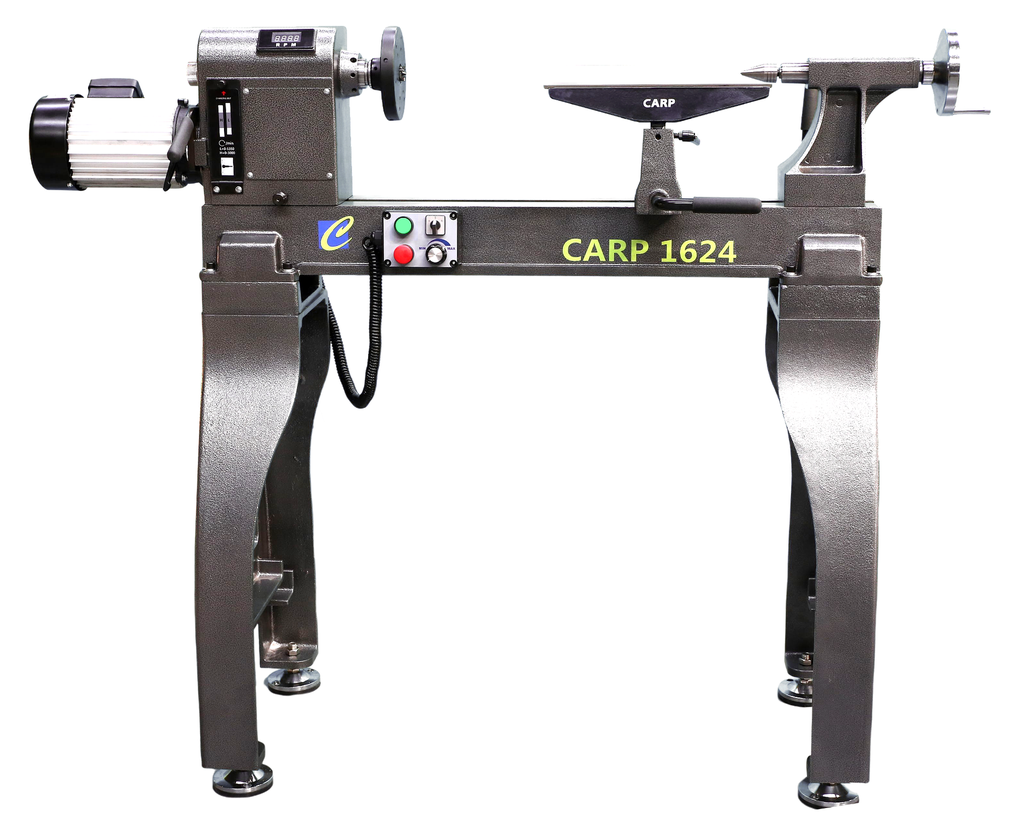

CARP 1624 Lathe
The CARP 1624
Purchase now and pick up during the Open Day (April 20-21) to enjoy a discount of € 200!
A stable lathe that stands out among all other lathes due to its extremely good price-quality ratio. The bed, legs, headstock, and tailstock are made of cast iron, making the CARP 1624 a stable lathe with virtually no vibrations. The headstock is rotatable and movable, ensuring that there is always a suitable position for every workpiece. But there are more features that make the 1624 a great investment.
The quill (the shaft that can be extended from the tailstock) is hardened. You won’t see it, but it’s a welcome addition, especially when drilling. Additionally, the quill has a trapezoidal thread. This ensures that the quill can handle significantly more force and moves in and out more smoothly.
The finish on the lathe is a powder coating. No paint was sprayed on; instead, we chose a durable finish that can withstand impact… a powder coating.
A third striking difference is the tool rest. CARP lathes naturally use CARP tool rests—the best available. They are vibration-free and feature a 12 mm top made of hardened round steel (62-63 HRC). The spindle of the lathe has an M33 x 3.5 mm thread (DIN 800). Additionally, the spindle is equipped with a safety feature that prevents components from coming loose during turning. This ASR ring ensures that a faceplate or chuck cannot come off while the lathe is running. The ASR ring is, of course, included.
The motor has adjustable speeds. A reliable frequency converter controls the 3-phase motor. Thanks to the frequency converter, maximum torque is always available. Between centers, you can clamp workpieces up to a maximum of 62 cm.
With the optional outboard turning attachment, you can turn extremely large diameters, or you can extend the bed. The outboard turning attachment consists of a bed extension and a height adjustment for the tool rest. This attachment can be mounted at various positions on the lathe.
Included with the CARP 1624:
- 25 mm drive center
- Rotating live center
- 350 mm tool rest
- 100 mm faceplate
- Centering system MK2 (After adjusting the headstock, the headstock and tailstock are perfectly realigned within seconds.)
- Ejection rod
- Wrench for removing the faceplate from the spindle
- Manual
- safety ring ASR
Standard features of the CARP 1624:
- DELTA frequency inverter
- Powerful 1.5 kW motor
- Two rotational directions
- Very smooth operation
Optional accessories:
Technical specifications:
- Center height: 200 mm
- Swing over bed: 400 mm
- Distance between centers: 620 mm
- Speeds: 100 - 1350 / 220 - 3000 RPM
- Movable control panel (with magnets), on/off switch, forward/reverse switch, and speed control
- Digital speed display
- Motor: 1.5 kW / 2 HP (230 V)
- Spindle thread: M33 x 3.5 mm with MC2 taper
- Tailstock: MC2 with a scale on the quill
- Clearly readable 36-step spindle index
- Tool rest post diameter: 1 inch (25.4 mm)
- Weight: approx. 170 kg
- Max dimensions (L x W x H): 1350 x 510 x 1230 mm
- Packaging dimensions: 113 x 58 x 55 cm
3-Year Warranty
All essential parts of CARP lathes come with a 3-year warranty. Learn more about our warranty terms here.
Why choose a CARP lathe?
Although CARP is a Dutch brand, CARP lathes are manufactured in China and Taiwan, just like Stratos, Killinger, Laguna, Record Power, Jet, etc. However, a keen turner will notice the differences. The powder coating, hardened tool rest, hardened quill, improved live center, or the trapezoidal thread in the quill—these are the details that make CARP lathes stand out. These are things you may not notice at first glance, but you will certainly appreciate over time! Compare and choose CARP.
